aluminum diamond plate

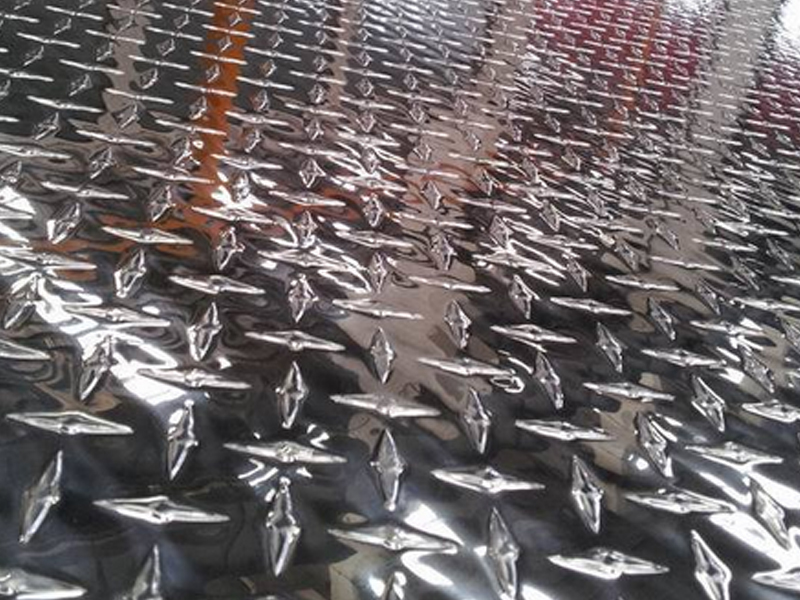

Aluminum diamond plate, also known as aluminum tread plate, is a type of metal sheet with a raised diamond pattern on one side. It's made from aluminum, which makes it lightweight, corrosion-resistant, and durable.

Haomei aluminum diamond plate was established in 1998, located in zhengzhou municipality in China. is engaged in aluminium diamond plate sheet,aluminum plate, aluminum foil,aluminum coil and aluminium circle production and trading for more than 18 years, thus we have rich product, technology and market experiences. With the world’s top aluminum processing equipments, experienced technical staff, cooperative and professional sales team, and the enterprise concept of responsibility and sharing, we have been widely focused since the day set up, and has gained high praise from customers home and abroad until now.

Product Features

Wide range of selection on aluminium diamond plate' size including customized shape and size.
Its non-skid properties mean that diamond plate is frequently used on the interior of ambulances and on the footplates of firetrucks.
aluminium Diamond plate may be used for surface protection against damage from foot traffic or other harmful chemicals.
Having good forming, drilling and welding ability.
Aluminium Diamond Plate is easy to fabricate and its raised diamond lug pattern provides good slip resistance.
Good quality with reasonable price
Well-Protected Packing

Quality policy

The quality policy of Haomei is to establish, implement, and maintain an effective assurance system based on ISO 9001 with the full participation of all employees in the process of continuous quality improvement and quality assurance practices resulting in total customer satisfaction. By encouraging open communication, we are dedicated to achieve true and sincere partnership with both internal and external customers resulting in total customer satisfaction.

Continuous Quality Improvement

The purpose of our quality system is to continuously improve the quality of our products, our services, and productivity in order to achieve internal and external customer satisfaction.

Sizes range for aluminium diamond plate

Alloy	Temper	Size range (mm)
Alloy	Temper	Thickness	Width	Length
1050A, 1200	F	1.5-2.4	800-1500	1000-6000
	F	2.0-6.0	800-1500	1000-8000
	F, H114	1.5-2.0	900-1600	1000-4000
	F, H114	2.0-8.0	900-2000	1000-9000
5251, 5052, 5754	H114, H224	1.5-2.4	800-1500	1000-6000
	H114, H224	2.4-6.0	800-1500	1000-8000
	F, H114,H224	1.5-2.0	900-1600	700-4000
	F, H114,H224	2.0-7.0	900-2000	1000-9000
	F, H114	7.0-8.0	900-2000	1000-9000
5154A	F, H114	2.0-6.0	900-1600	1000-9000
5086,5083	F, H114, H224, H116	2.0-6.0	900-1600	1000-9000
6061, 6082	F, 0, T4, T6	1.5-2.0	900-1250	700-4000
	F, 0, T4, T6	2.0-3.5	900-1600	1000-4000
	F, 0	2.0-3.5	1600-2000	1000-4000
	F, 0, T4, T6	3.5-4.83	900-1250	1000-4000
	F, 0, T4, T6	3.5-4.83	1250-2000	1000-4000
	F, 0	4.83-6.35	900-2000	1000-4000
3003	H224	1.5-2.0	800-1524	1000-4000
		2.0-2.4	800-1524	1000-6000
		2.4-6.35	800-1524	1000-8000

Sizes range for aluminium tread coil

Alloy	Temper	Size range (mm)
		Thickness	Width	Diameter
		Thickness	Width	Inside	Outside
5251, 5052, 5754	H114, H224	1.5-3.0	800-1500	500, 610	Max.1600
	H114, H224	3.0-6.0	800-1500	750	Max.1600
	F, H114, H224	3.0-7.0	1250-2000	600	Max.1800
	F, H114	7.0-8.0	1250-2000	600	Max.1800
5154A, 5086, 5083	F, H114	3.0-6.0	1250-2000	600	Max.1800
1050A, 1200, 3003	F, H114	3.0-8.0	1250-2000	600	Max.1800
3003	H224	1.42-3.1	800-1524	500, 610	Max.1600

Chemical Properties(WT.%)

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	impurities	Al	note
1050	<0.25	<0.40	<0.05	<0.05	<0.05		<0.05	<0.03	Other, each 0.03	>99.5	V<0.05
1060	<0.25	<0.35	<0.05	<0.03	<0.03		<0.05	<0.03	Other, each 0.03	>99.6	V<0.05
1070	<0.20	<0.25	<0.04	0.03	0.03		0.04	0.03	Other, each 0.03	>99.7	V<0.05
1100	Si +Fe <0.95		0.05-0.20	<0.05			<0.10		Other, each 0.03	>99.00	V<0.05
3003=АМц	<0.6	<0.7	0.05-0.20	1.0-1.5			<0.10		Other,each 0.05, total 0.15
3004	<0.30	<0.7	<0.25	1.0-1.5	0.8-1.3		<0.25		Other,each 0.05, total 0.15
3105	<0.6	<0.7	<0.30	0.30-0.8	0.20-0.8	<0.20	<0.4	<0.10	Other,each 0.05, total 0.15
5052=АМг2.5	<0.25	<0.40	<0.10	<0.10	2.2-2.8	0.15-0.35	<0.10		Other,each 0.05, total 0.15
5083=АМг4.5	<0.40	<0.40	<0.10	0.40-1.0	4.0-4.9	0.05-0.25	<0.25	<0.15	Other,each 0.05, total 0.15
6061=АД33	0.40-0.8	<0.7	0.15-0.40	<0.15	0.8-1.2	0.04-0.35	<0.25	<0.15	Other,each 0.05, total 0.15
